Overview

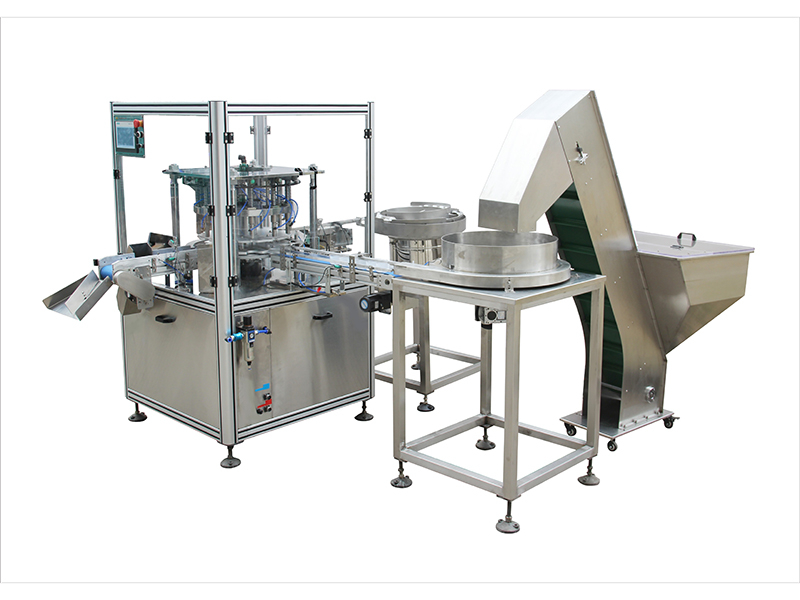

A precision automated system designed for inserting PE O-rings into caps, ideal for pharmaceutical, food packaging, and beverage industries requiring hygienic sealing solutions.
Key Features
1. Advanced Control System
Siemens PLC with intuitive touchscreen interface
Variable frequency drive for adjustable operation parameters
User-friendly preset configurations for different cap specifications
2. Reliable Performance
Mechanical transmission system ensures consistent operation
Processes multiple cap sizes without tooling changes
Maintains production stability at speeds up to [Customized] caps/minute
3. Quality Assurance
Non-contact assembly prevents cap damage
Laser inspection system verifies foil presence
Automatic rejection of defective units (scratches, dents, or contamination)
4. Smart Production Management
Batch counting with auto-stop at preset quantities
Real-time production monitoring with fault diagnostics
Vibration feeder with auto-stop/restart function
5. Hygienic Design
Sanitary construction meets pharmaceutical standards
Eliminates secondary contamination risks
Easy-clean surfaces with minimal maintenance points
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 60 PCS/MIN |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 2.2 KW |
External dimension | 2500*2500*1500 mm³ |
G/N Weight | 800/650 KGS |
Air pressure | 0.6-0.8 Mpa |
Safety & Compliance
CE certified components
Emergency stop protection
Overload safeguards
