Product Application

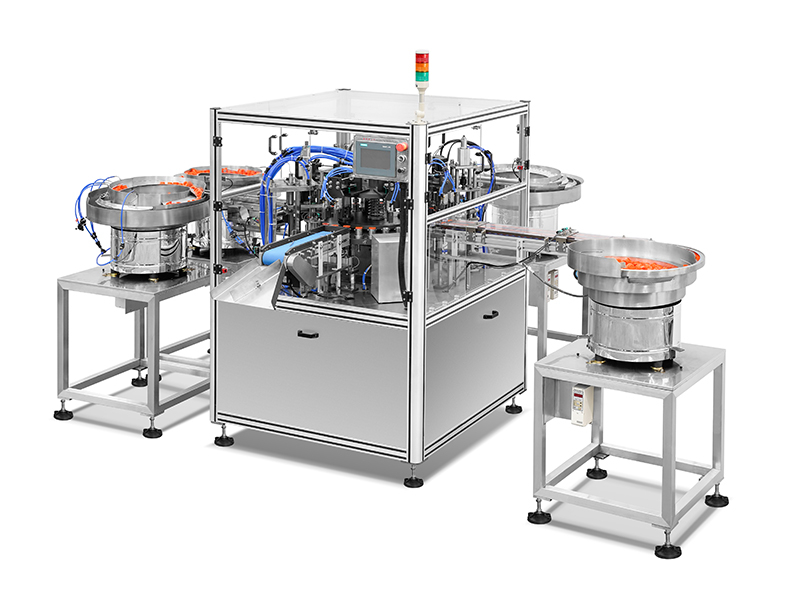

This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Key Technical Parameters

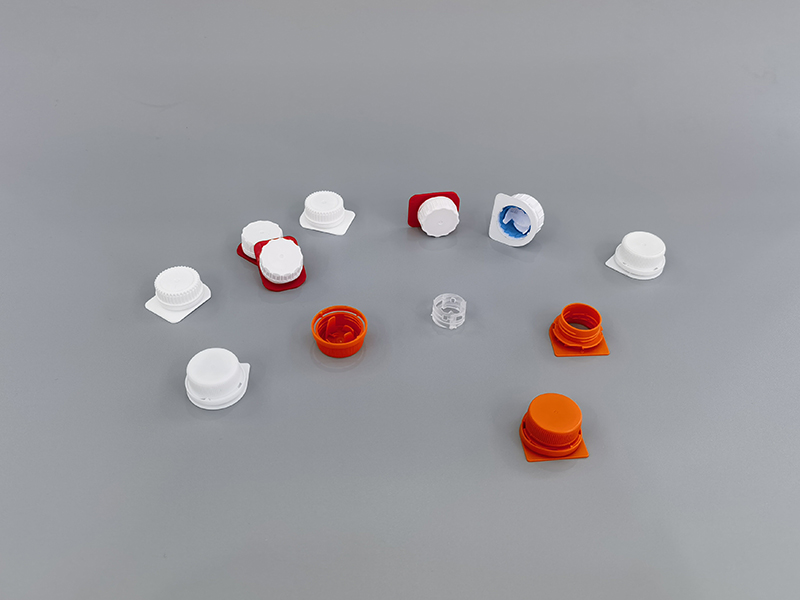

Specification of cap | Customized |
Machine capacity | 70 PCS/MIN |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 1.5 KW |
External dimension | 3500*2800*1600 mm |
G/N Weight | 1200/1000 KGS |
Air pressure | 0.6-0.8 Mpa |
Machine Description
1. Application & Scope
This advanced 3-component cap assembly machine is specifically designed for Tetra milk packaging applications, with wide suitability for:
Cap manufacturing facilities
Pharmaceutical packaging operations
Food processing plants
Daily chemical product manufacturers
General packaging industries
2. Advanced Control System
Siemens PLC with intuitive touchscreen HMI interface
Variable frequency drive (VFD) technology providing:
Customizable parameter settings
Broad operational flexibility
User-friendly operation
Exceptional running stability
Hassle-free cleaning
Low-maintenance requirements
Extended equipment lifespan
3. Quality Assurance System
Integrated automatic finished product detection
Guaranteed high product qualification rate
Comprehensive quality control throughout assembly process
4. Safety Compliance
Full compliance with national standards for:
Environmental safety
Machinery safety
Electrical safety
Multiple protective features including:
Protective top covers
Overload protection
Emergency stop function
Operator safety guards
5. Feeding System
European standard vibratory cap feeders
PLC-controlled conveyor system
Quick-change sensor connectors featuring:
Tool-free maintenance
Future-proof design
Minimized downtime
6. Damage-Free Operation
Gentle handling ensures:
No surface abrasions
Elimination of pressure marks
Complete oil-free processing
Prevention of component deformation
Automatic rejection of non-conforming products
7. Production Management
Intelligent batch control system with:
Programmable quantity settings
Automatic shutdown at preset count
One-touch reset function
Precision product discharge mechanism
Key Features
Specifically optimized for Tetra milk cap assembly
Combines three distinct components in one continuous operation
Meets stringent food-grade manufacturing requirements
Energy-efficient operation with low power consumption
Compact footprint for space-constrained production lines
