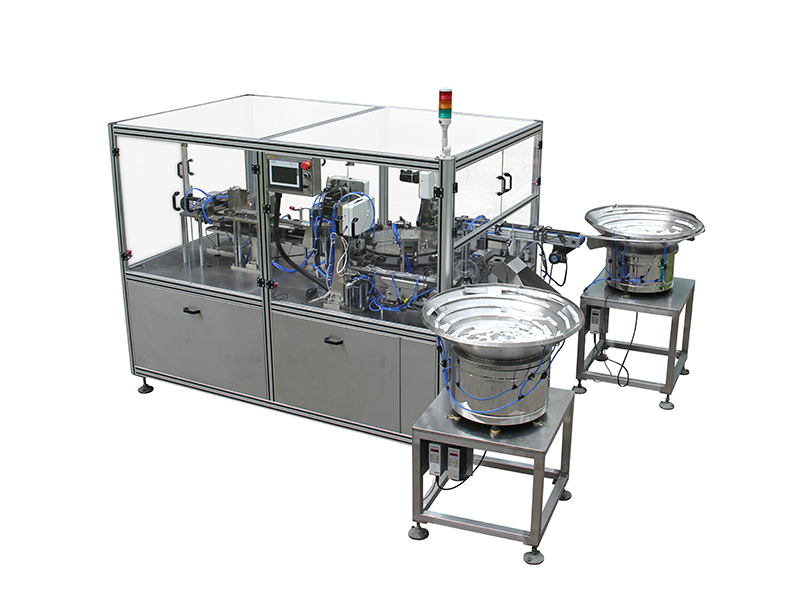

Test Kit Assembly Machine

Scope of Application

This advanced assembly system is specifically designed for:

• Automated production of medical detection reagent cards

• Precision medical device manufacturing


• High-standard packaging applications in:


• Pharmaceutical industry


• Diagnostic equipment production


• Laboratory supply manufacturing


Key Features & Advantages

1. Fully Automated Assembly Process

• Complete integration of cap, plug and silicone valve components

• Single-cycle processing eliminates manual handling


• Sanitary closed-system operation prevents contamination

2. High-Speed Precision Performance

• Production capacity: 80 pieces/minute (±1% tolerance)

• 300% faster than manual assembly

• Clean-room compatible operation

3. Quality Control Systems

• Integrated automatic counting with:

• Programmable batch quantities


• Auto-stop at preset counts


• Production data tracking

Defect detection and rejection system ensures:

• 100% component verification

• Automatic removal of non-conforming products

4. Advanced Feeding Technology

• Smart vibratory sorting and feeding system:

• Handles unordered components


• Precision orientation control


• Continuous material supply


• Automatic level monitoring

5. Intelligent Control System

• Variable frequency drive technology provides:

• Stable speed regulation


• Energy-efficient operation


• Extended equipment lifespan


• User-friendly interface with:

• One-touch operation

• Real-time monitoring

• Fault diagnostics

6. Clean Production Environment

• Integrated laminar airflow system:


• ISO Class 8 clean air standard


• Continuous particle removal


• Positive pressure maintenance

• GMP/CE compliant design:

• Full traceability

• Validated cleaning protocols

• Documentation ready

Technical Specifications

• Power: 380V/50Hz (or customized)

• Air pressure: 0.6-0.8MPa


• Machine footprint: 1500×1200×1600mm


• Noise level: <65dB


• Materials: 304 stainless steel (contact surfaces)


Value Proposition

• 85% reduction in labor costs

• 99.8% assembly accuracy rate


• 40% space saving vs manual stations


• 30% material waste reduction


• Full compliance with medical device regulations
