Product Application
This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 20-60 PCS/MIN |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 2.8 KW |
External dimension | 3300*2600*1800 mm³ |
G/N Weight | 1100/900 KGS |
Air pressure | 0.6-0.8 Mpa |
Machine Overview

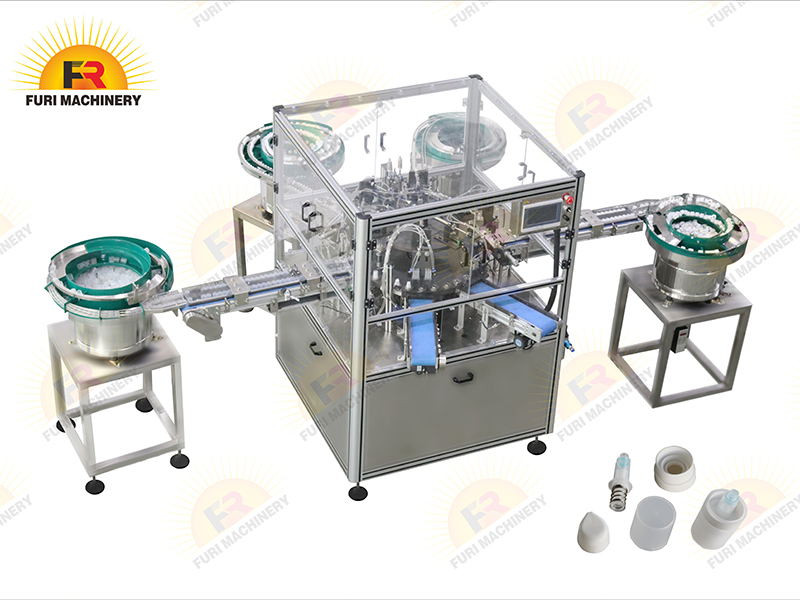

The 3-Component Silicon Valve Bottle Cap Assembly Machine is an advanced, PLC-controlled system designed for high-precision cap assembly in industries such as pharmaceuticals, food, daily chemicals, and packaging.
Key Features & Specifications
1. Application & Scope

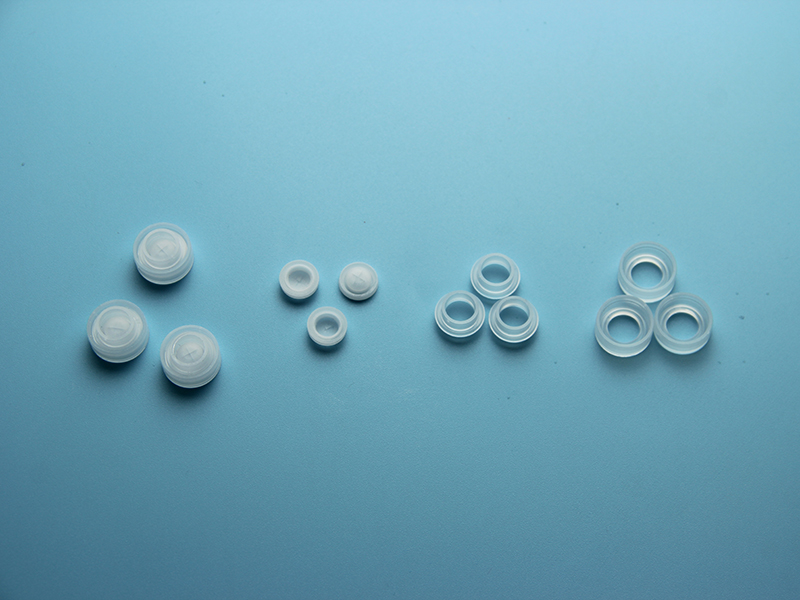

Designed for assembling 3-part silicon valve bottle caps with precision.
Suitable for cap manufacturers, pharmaceutical plants, food processing, daily chemical producers, and packaging facilities.
2. Machine Structure & Components
Vibratory Bowl Feeder – Sorts and orients silicon valves/rings in the correct direction.
Cap Hopper Feeder – Aligns caps in an orderly manner with openings facing upward.
Linear Vibratory Feeder – Transports pre-aligned caps to the main assembly unit.
Main Assembly Unit – Automatically assembles the three components, inspects finished caps, and rejects defective ones.
Discharge Conveyor – Counts and outputs finished caps.
3. Control System
Siemens PLC & HMI Touchscreen for intuitive operation.
Variable Frequency Drive (VFD) Control – Enables adjustable settings, wide applicability, and smooth operation.
User-Friendly Interface – Simple setup, stable performance, and easy maintenance.
4. Quality Assurance
Automatic Defect Detection – Ensures only compliant caps proceed, maintaining high product quality.
Zero-Damage Handling – Prevents scratches, dents, deformation, or contamination during processing.
5. Safety & Compliance
Complies with international safety standards (mechanical, electrical, environmental).
Safety Guards, Overload Protection & Emergency Stop for operator protection.
European Standard Wiring & Quick-Change Sensor Connectors for easy maintenance.
6. Counting & Batch Control
Programmable Batch Quantities – Automatically stops when the preset count is reached.
Reset Function – Allows flexible batch adjustments.
Key Advantages
High Efficiency – Fast, automated assembly with minimal manual intervention.
Precision & Reliability – Consistent quality with automated defect rejection.
Durable & Low-Maintenance – Robust construction with easy-access components.
Operator Safety – Full compliance with industrial safety regulations.
This machine is an ideal solution for manufacturers seeking high-speed, high-accuracy cap assembly with minimal downtime and maximum safety.
