Product Application
This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Key Benefits
Enhanced Efficiency - Streamlines the production process for optimal performance.
Labor Savings - Reduces manual handling, lowering operational costs.
Specification of cap | Φ20-50 mm |
Machine capacity | 2400 PCS/HOUR |
Power voltage | 220 V |
Total power | 3.2 KW |
External dimension | 3350*2550*1950 mm³ |
G/N Weight | 1100/900 KGS |
Air pressure | 0.6-0.8 Mpa |
Machine Description

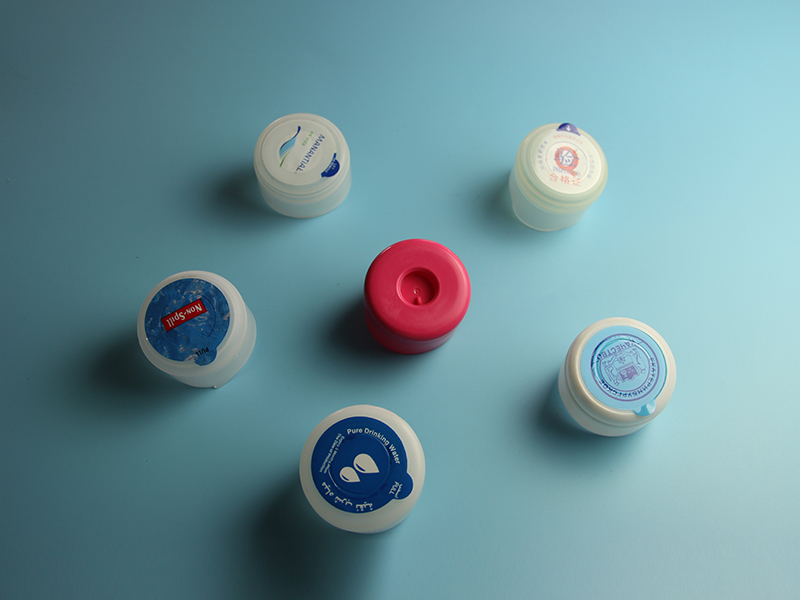

Our state-of-the-art automatic labeling machine is specifically designed for 5-gallon water bottle caps, incorporating advanced technologies to meet premium anti-counterfeiting, hygiene, and quality standards.
Key Features
1. Intelligent Operation System
Equipped with Siemens PLC and HMI touchscreen interface
Features variable frequency drive for precise speed control
Offers flexible parameter settings with wide application range
Ensures stable operation with easy maintenance procedures
2. Precision Labeling Process
Complete workflow: Cap sorting → Orientation → Feeding → Film application → Precision cutting → Secondary sealing → Discharge → Automatic counting
Vibration-based cap feeding system compliant with EU standards
Quick-change sensor connectors for easy maintenance
3. Quality Assurance
Gentle handling prevents cap damage (scratches, deformation, etc.)
High-precision labeling with perfect seal integrity
Consistent finished product appearance meeting quality standards
4. Smart Production Control
Auto-stop function for material shortage (caps/labels)
Batch quantity presetting with auto-stop at target count
Production data reset capability
5. Hygienic Design
Closed system prevents material contamination
Eliminates need for post-process sterilization
Ideal for applications with strict hygiene requirements
Key Advantages
Compact modular design saves floor space
30% faster than conventional labeling machines
Achieves 99.5% labeling accuracy rate
Reduces material waste by 25%
Energy-efficient operation
