Product Application
This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Process Workflow
Feeding & Alignment: The outer cap and inner component are sequentially aligned and fed into the conveying system.
Combining: The components advance to the combining unit, where they are securely assembled.
Liner Insertion: The liner (wadding) is precisely inserted into the combined caps.
Discharge: The finished products exit through the discharge outlet, completing the cap assembly and liner insertion process.
Key Benefits
More concise and professional terminology
Smoother flow between process steps
Clearer sequence of operations
More technical phrasing while maintaining readability
Better parallel structure in the description
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 6000 PCS/HOUR |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 3.5 KW |
External dimension | 5200*2500*1700 mm³ |
G/N Weight | 1400/1200 KGS |
Air pressure | 0.6-0.8 Mpa |
Machine Description
1. Overview

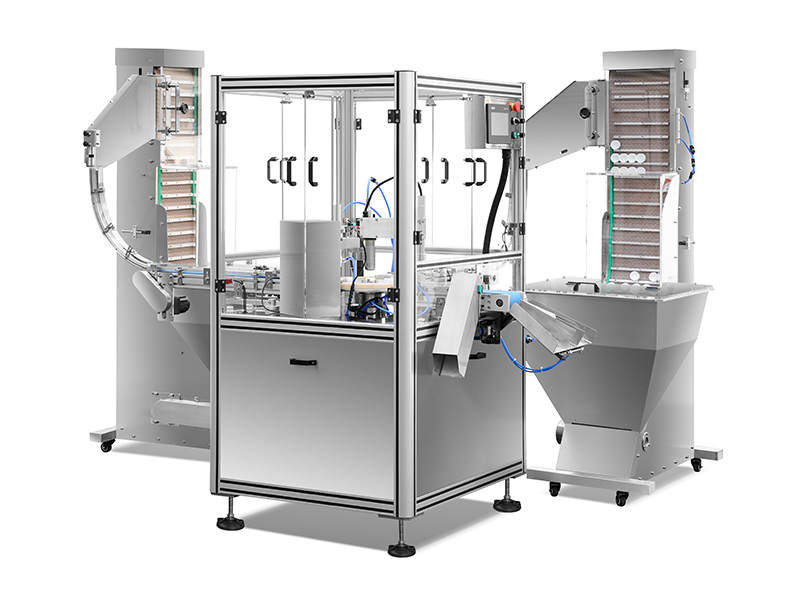

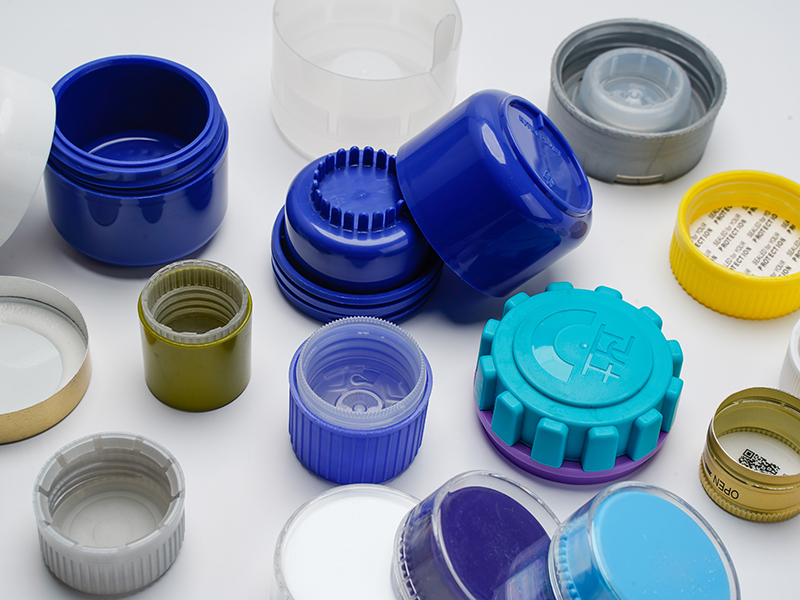

This fully automatic cap assembly machine is designed for combining 3-part CRC caps, widely used in cap manufacturing, packaging, food processing, and pharmaceutical industries.
2. Control System
Equipped with a Siemens PLC & touchscreen HMI for precise operation.
Features variable frequency drive (VFD) control, enabling adjustable settings, broad applicability, user-friendly operation, stable performance, easy cleaning, low maintenance, and long service life.
3. Drive System
Mechanical transmission mechanism ensures smooth, reliable operation and compatibility with various cap specifications.
4. Quality Assurance
Zero damage guarantee—no wear, scratches, dents, oil stains, or deformation during assembly. Defective products are automatically rejected.
Automatic rejection of unassembled parts ensures high pass rate.
5. Batch Counting & Unloading
Programmable batch quantity—machine stops automatically upon reaching the preset count.
Reset function for flexible production management.
6. User-Friendly Operation
Intuitive touchscreen interface with real-time process monitoring & fault alerts.
7. Smart Safety Features
Auto-stop function when the vibratory bowl runs out of caps, with auto-resume upon refeed.
8. Hygienic Design
Ideal for sterile environments (e.g., pharmaceuticals, food), preventing secondary contamination and eliminating the need for post-assembly sterilization.
