Product Application

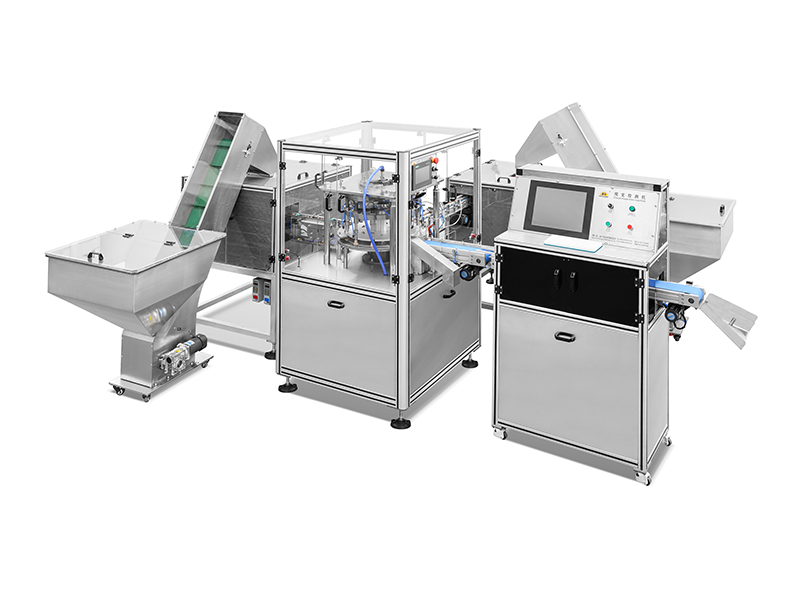

This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Performance Characteristics
1. Automated Assembly Process
Sequential feeding of Workpiece 1 and Workpiece 2 through precision-aligned conveyor system
Automated transfer to main assembly unit for seamless component integration
Final product counting and ejection through dedicated discharge port
Complete closed-loop assembly cycle for maximum efficiency

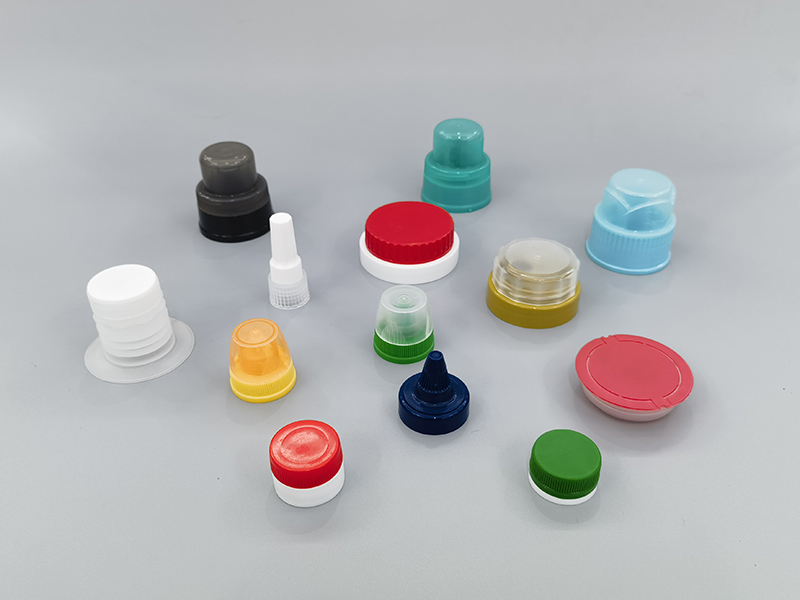

2. Versatile Combination Capabilities
Dual-function assembly system for:
Complete joining of two separate cap components
Precision combination of multiple cap sub-assemblies
Universal design accommodates various cap configurations
3. Process Advantages
Continuous high-speed operation with minimal downtime
Precision alignment ensures consistent product quality
Flexible system adapts to diverse production requirements
Automated counting system provides accurate production tracking
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 6000 PCS/HOUR |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 1.5 KW |
External dimension | 2100*1300*1700 mm³ |
G/N Weight | 650/550 KGS |
Air pressure | 0.6-0.8 Mpa |
Machine Description
1. Application Scope
This advanced cap liner insertion machine is specifically designed for:
Cap manufacturing facilities
Liner production plants
Pharmaceutical packaging lines
Food processing packaging
Daily chemical product packaging
General packaging industries
2. Control System
Integrated Siemens PLC with HMI touchscreen control
Variable frequency drive (VFD) technology enables:
Customizable parameter settings
Broad application range
Intuitive operation
Consistent operational stability
Simplified cleaning procedures
Low-maintenance design
Extended service life
3. Drive Mechanism
Robust mechanical transmission system ensures:
Reliable long-term operation
Smooth performance consistency
Compatibility with multiple cap specifications
4. Feeding System
European standard-compliant vibratory cap feeders
PLC-integrated conveyor belt system
Quick-change sensor connectors for:
Simplified maintenance
Future upgrade flexibility
Reduced downtime
5. Quality Assurance
Zero-defect processing guarantee:
No surface wear or scratches
Elimination of pressure marks
Complete oil/grease-free operation
Prevention of component deformation
Automatic rejection of non-conforming products
6. Production Management
Automated batch counting system with:
Programmable quantity presets
Auto-stop at target quantity
Reset function for continuous operation
Precision discharge mechanism
