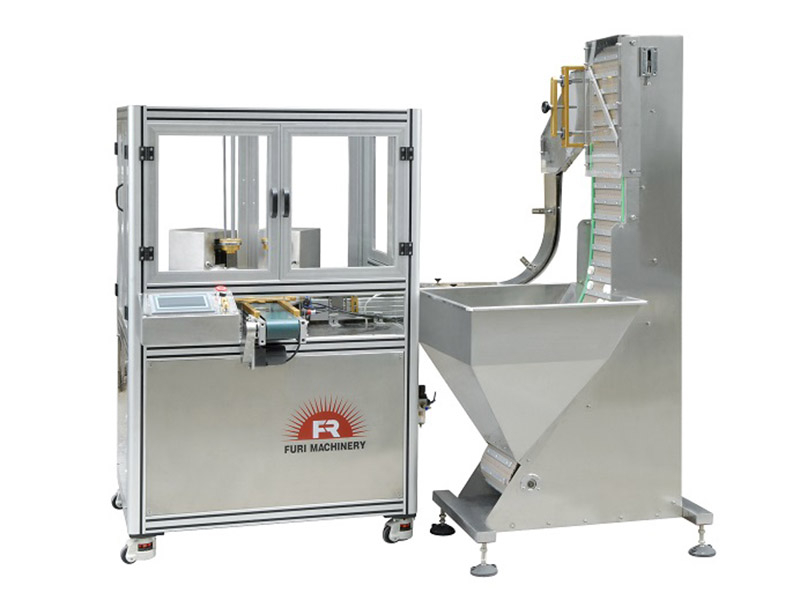

FRTB-SD3-C Cap Lining Wadding Machine

Technical Specifications

1. Application Scope

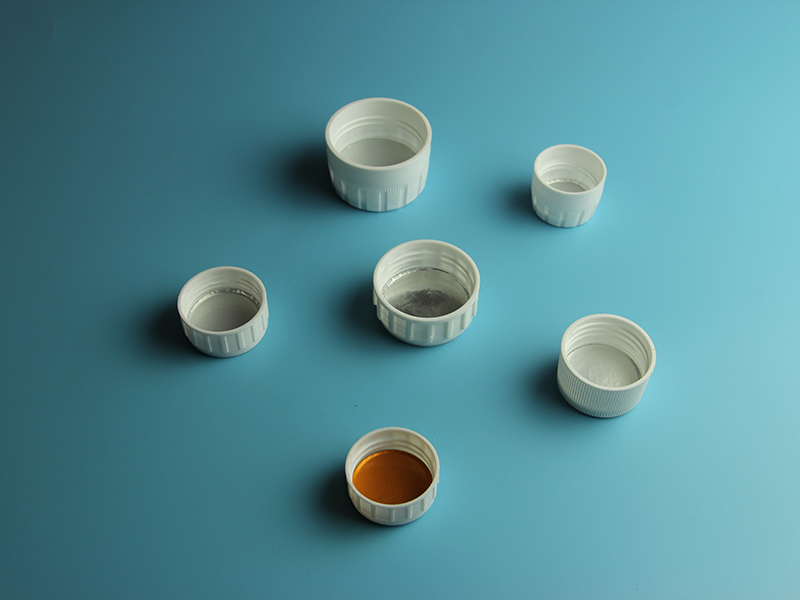

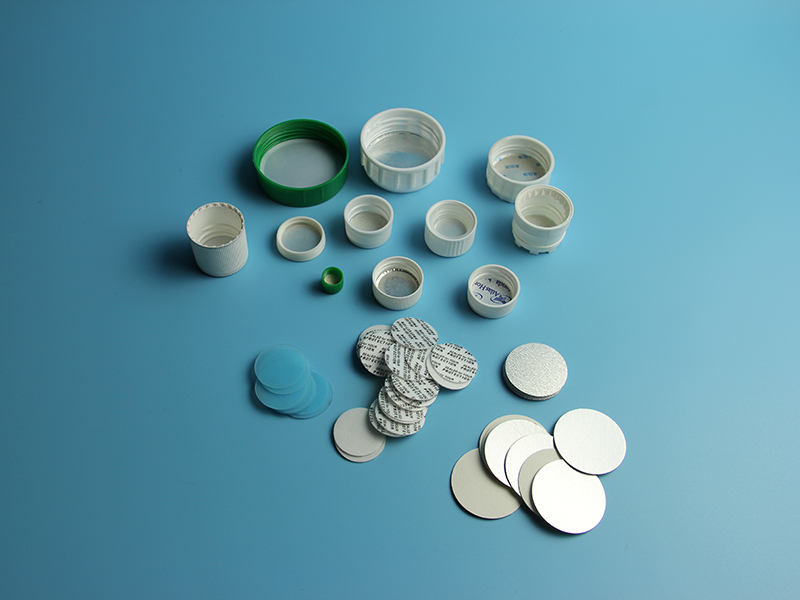

• Designed for precision liner insertion into various cap types

• Suitable for pharmaceutical, food & beverage, daily chemical, and packaging industries

• Processes multiple cap specifications with quick changeover capability

2. Control System

• Advanced PLC with HMI touchscreen interface


• Variable frequency drive technology for:


• Adjustable speed control


• Stable operation parameters


• Energy-efficient performance

• User-friendly programming for different production requirements

3. Drive Mechanism

• Robust mechanical transmission system ensures:

• Consistent operation stability

• Long service life

• Minimal maintenance requirements

• Handles various cap sizes without mechanical adjustments

4. Feeding System

• European-standard vibratory cap feeders with:

• PLC-integrated control

• Quick-disconnect sensor cables


• Tool-free changeover capability

• Precision belt feeding system synchronized with main operation

5. Quality Assurance

• Non-contact processing prevents:

• Surface scratches

• Deformation


• Contamination

• Automatic rejection of defective products

• Maintains consistent product integrity throughout operation

6. Production Management

• Intelligent counting system features:

• Batch quantity presetting


• Automatic shutdown upon completion


• Reset function for continuous production

• Real-time production monitoring via HMI

Key Advantages

• High-speed precision assembly

• Hygienic design meets GMP requirements

• Reduced material waste with automatic defect detection

• Low maintenance with easy-access components

• Energy-saving operation mode

Optional Features

• Vision inspection system

• Data logging capability

• Remote monitoring interface

• Customized feeding solutions
