| Quantity: | |
|---|---|

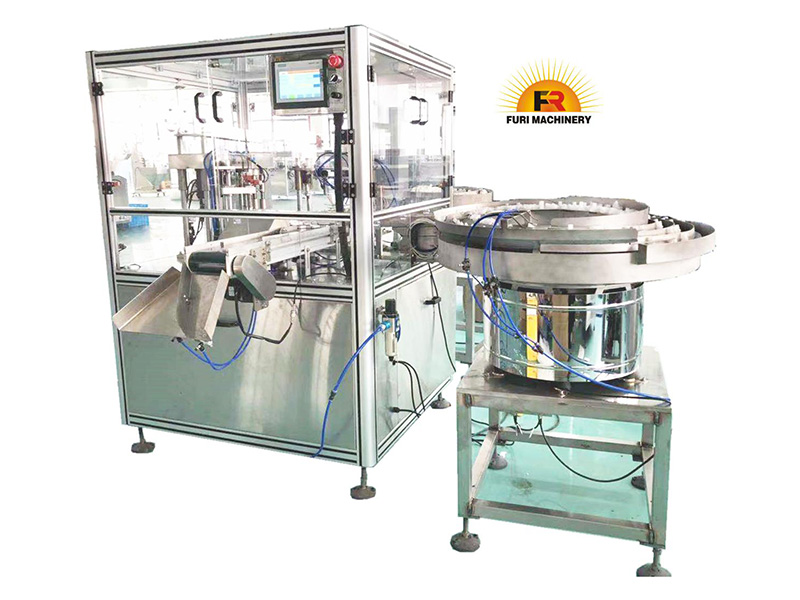

Cap Assembly Machine Overview
1. Application
This cap assembly machine is designed for seamlessly combining two-part caps, widely used in cap manufacturing, packaging, food production, and pharmaceutical industries.
2. Control System
Equipped with Siemens PLC and touch screen for intuitive operation.
Features variable frequency control for adjustable settings, broad applicability, and stable performance.
Ensures easy maintenance, cleaning, and long-lasting durability.
3. Drive System
Mechanical transmission ensures stable and reliable operation.
Compatible with various cap specifications without adjustments.
4. Quality Assurance
Zero damage guarantee—no scratches, marks, grease stains, or deformation during assembly.
Automatic rejection of unassembled caps to maintain high certification rates.
5. Production Management
Automatic counting & batch control—stops when preset quantity is reached, with reset capability.
Touchscreen interface with real-time process monitoring and fault alerts for easy operation.
6. Smart Automation
Cap shortage detection—halts operation if the vibrator disc runs empty and auto-resumes when caps are replenished.
7. Hygienic Design
Ideal for sterile environments, preventing secondary contamination and eliminating the need for post-assembly sterilization.
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 120-140 PCS/MIN |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 3.2 KW |
External dimension | 2800*2800*1700 mm³ |
G/N Weight | 900/800 KGS |
Air pressure | 0.6-0.8 Mpa |
Key Advantages
High precision
User-friendly
Low maintenance
Compliance with strict sanitary standards
