Product Application
This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Process Workflow
Workpiece 1, Workpiece 2, Workpiece 3 and Workpiece 4 are sequentially aligned and fed into the conveying unit. They then move into the machine’s combining unit for assembly. Once processed, the finished caps are discharged through the outlet, completing the entire assembly cycle.
Key Benefits
Enhanced Efficiency - Streamlines the production process for optimal performance.
Labor Savings - Reduces manual handling, lowering operational costs.
Specification of cap | Customized |
Machine capacity | 5000-1000 PCS/HOUR |
Power voltage | 220 V |
Total power | 3.2 KW |
External dimension | 3350*2550*1950 mm³ |
G/N Weight | 1100/900 KGS |
Air pressure | 0.6-0.8 Mpa |
Machine Description
1. Application Scope

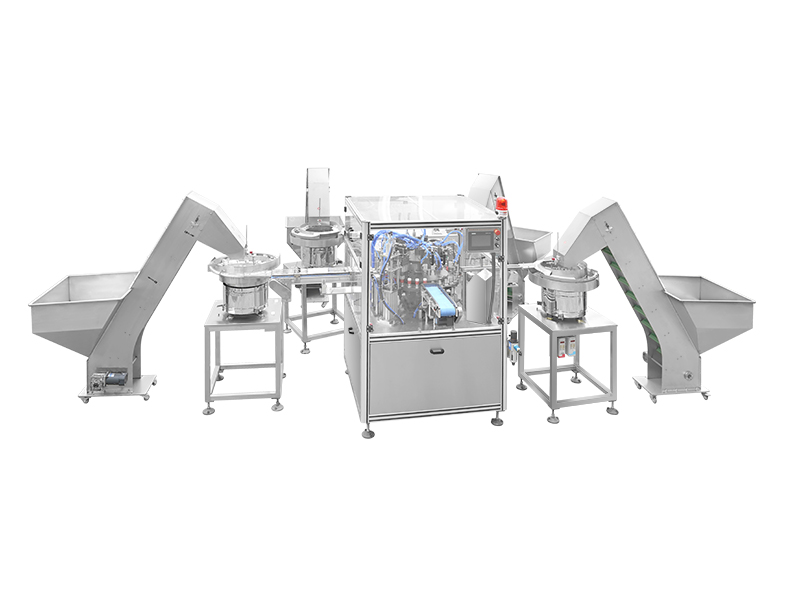

A fully automatic 4-component cap assembly machine designed for cap manufacturers, packaging facilities, and food/pharmaceutical production lines.
2. Intelligent Control System
Equipped with Siemens PLC and touchscreen interface
Features variable frequency drive technology for precise speed control
Offers flexible parameter settings with wide application range
Ensures stable operation with easy maintenance and cleaning
3. Precision Drive Mechanism
Mechanical transmission system guarantees reliable performance
Compatible with multiple cap specifications and sizes
4. Quality Assurance
Zero-defect assembly process prevents
Surface scratches
Deformation
Grease contamination
Pressure marks
Automatic rejection of defective components
5. Automated Production Control
Integrated batch counting system with:
Preset quantity function
Auto-stop at target count
Reset capability
Real-time production monitoring via touchscreen
6. Smart Operation Features
Visual process flow display
Automatic fault diagnosis
User-friendly interface
7. Safety & Efficiency Functions
Auto-stop during cap shortage
Self-restart when caps are replenished
Continuous operation capability
8. Hygienic Design
GMP-compliant construction
Prevents material contamination
Eliminates need for post-assembly sterilization
Key Advantages
30-50% increased production efficiency
99.5% correct orientation rate
Adaptable to 50+ cap specifications
Reduces labor costs by 60-80%
24/7 continuous operation capability
