Product Application

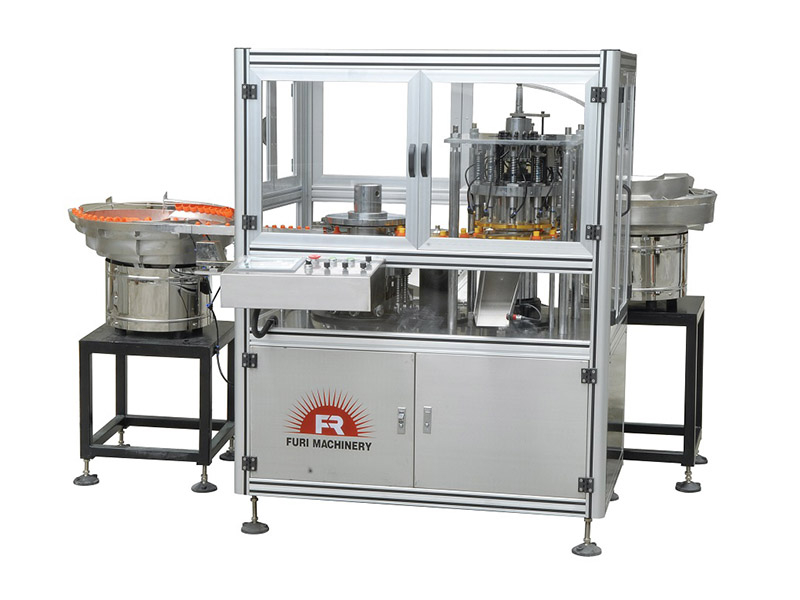

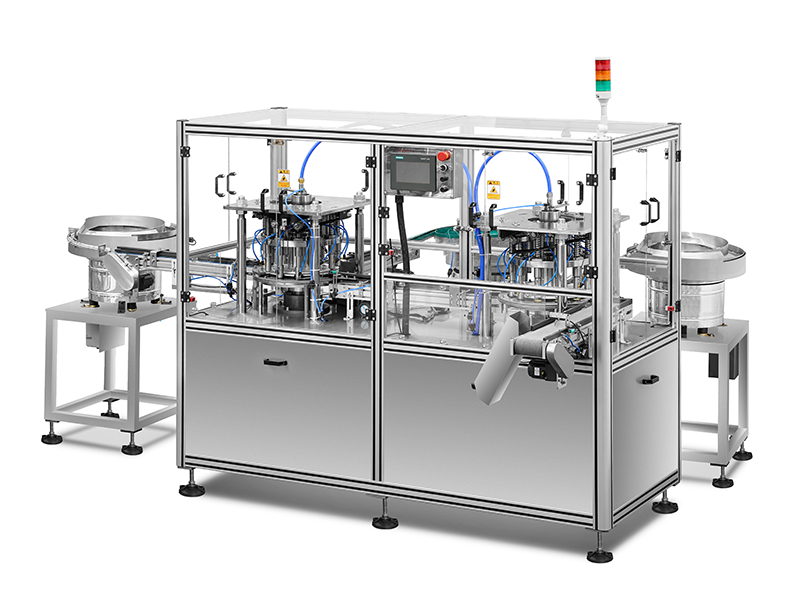

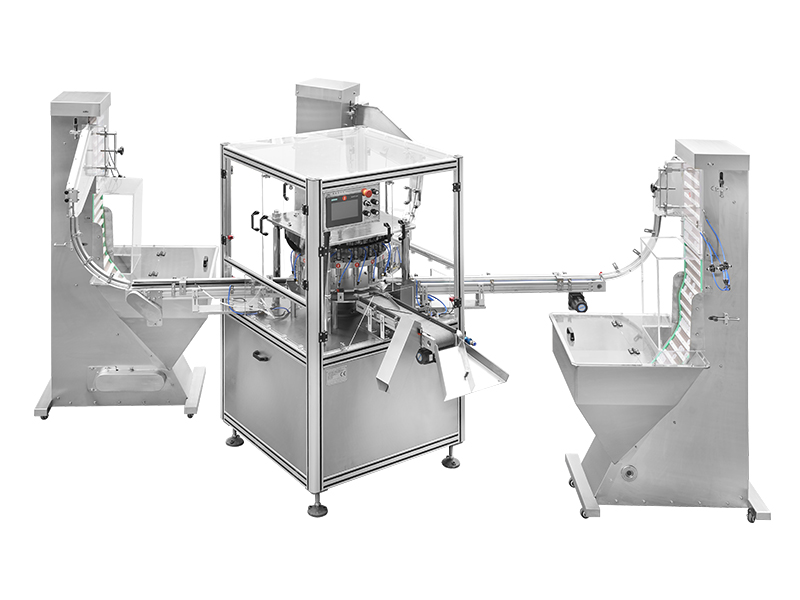

This high-performance cap assembly machine is the preferred choice for cap factories, packaging companies, food producers, and pharmaceutical plants, delivering efficiency and reliability.
Process Workflow
Workpiece 1, Workpiece 2, and Workpiece 3 are sequentially aligned and fed into the conveying unit. They then move into the machine’s combining unit for assembly. Once processed, the finished caps are discharged through the outlet, completing the entire assembly cycle.
Key Benefits
More concise and professional terminology
Smoother flow between process steps
Clearer sequence of operations
More technical phrasing while maintaining readability
Better parallel structure in the description
Key Technical Parameters
Specification of cap | Φ20-50 mm/Customized |
Machine capacity | 5000-6000 PCS/HOUR |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 2.5 KW |
External dimension | 2500*2500*1500 mm³ |
G/N Weight | 900/800 KGS |
Air pressure | 0.6-0.8 Mpa |
Key Features
1. Full Automation - Eliminates manual labor with complete automated assembly, significantly enhancing production efficiency for multi-component bottle caps.
2. High-Speed Hygienic Processing - Ensures rapid, smooth assembly while maintaining strict hygienic standards for product safety.
3. Smart Orientation Control - Integrated reverse-cap detection automatically returns misaligned caps, guaranteeing proper orientation on discharge.
4. Precision Vibratory Feeding - Features a vibrating disc elevator that sorts and precisely feeds caps through conveyor to turntable for accurate assembly
5. Reliable Mechanical Conveyance - Robust transmission system ensures stable operation and accommodates various cap specifications with consistent performance.
6. Advanced PLC Control System - Incorporates frequency conversion technology for user-friendly operation, easy maintenance, and durable performance.
7. Automatic Quality Control - Real-time defect detection removes faulty products to maintain high quality standards.
8. Safety Protection System - Includes no-cap shutdown alarm and other safety features for operator protection.
9. Programmable Production Control - Allows preset production quantities with auto-stop function for efficient batch processing.
10. GMP-Compliant Design - Manufactured to strict GMP standards for hygienic-sensitive applications, preventing contamination and eliminating sterilization requirements.
Key Benefits
30-50% increased production efficiency
99.5% correct orientation rate

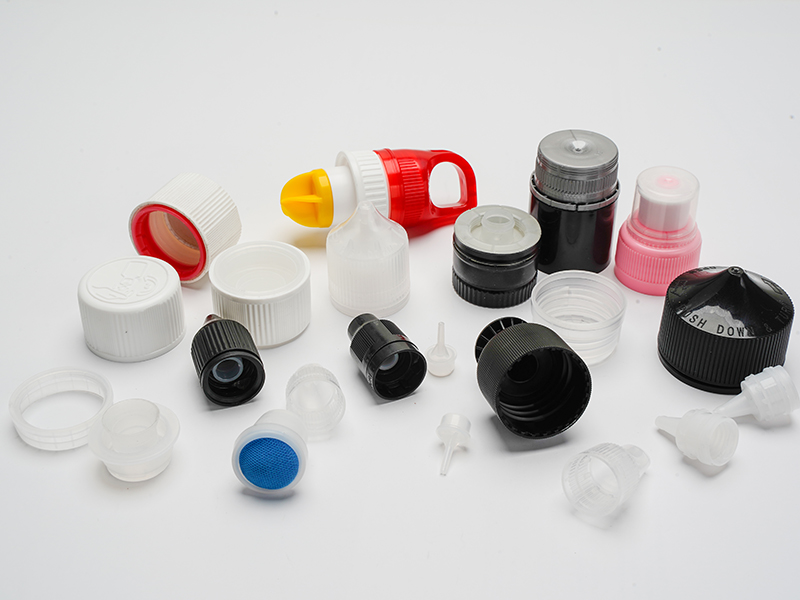

Adaptable to 50+ cap specifications
Reduces labor costs by 60-80%
24/7 continuous operation capability
