FURI
842230.00
Technical Overview
1. Advanced Labeling Solution

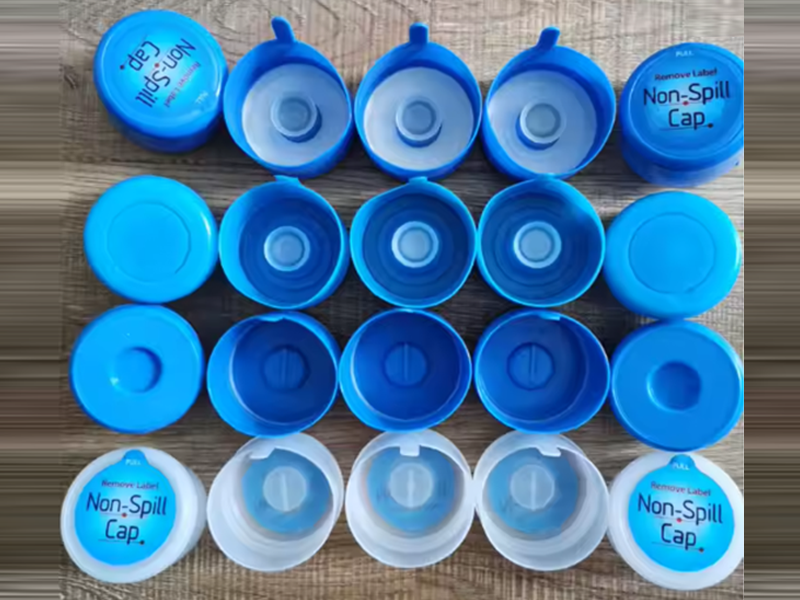

Specialized for premium 5-gallon water bottle caps
Incorporates anti-counterfeit technology meeting industry security standards
Ensures hygienic processing for food-grade applications
Delivers high-end aesthetic finish for premium products
2. Precision Labeling Process
Cap orientation and alignment
Automated cap transportation
Precision cap positioning
Film feeding and application
Primary heat sealing
Secondary reinforcement sealing
Finished product discharge
Automated production counting
3. Premium Control System
Siemens PLC with industrial HMI interface
Variable frequency drive technology for:
Fully customizable operation parameters
Wide speed range
Exceptional process stability
Compact footprint with optimized workflow
4. Smart Feeding System
European-standard vibratory feeders with:
Direct PLC integration
Tool-free sensor replacement
Quick-disconnect electrical connections
Precision servo-controlled film delivery system
5. Quality Assurance Features
Gentle handling prevents:
Surface defects
Cosmetic imperfections
Product contamination
Precision labeling ensures:
±0.5mm application accuracy
Consistent seal quality
Premium finished appearance
6. Automatic Production Control
Intelligent material monitoring:
Auto-stop on empty cap/foil detection
Visual and audible alerts
Batch production management:
Programmable quantity settings
Automatic batch completion stop
One-touch reset function
7. Hygienic Design Advantages
Closed-system processing prevents:
Environmental contamination
Human contact
Microbial growth
Eliminates need for:
Post-process sterilization
Additional cleaning cycles
Quality verification steps
Key Technical Parameters
Specification of cap | Φ20-50 mm |
Machine capacity | 2400 PCS/HOUR |
Power voltage | 220V, single phase, 50-60Hz |
Total power | 3.2 KW |
External dimension | 3350*2550*1950 mm³ |
G/N Weight | 1100/900 KGS |
Air pressure | 0.6-0.8 Mpa |
Key Advantages
FDA-compliant materials
GMP-certified production quality
30% energy saving vs conventional models
<0.1% defect rate guarantee
<5 minute changeover time
Available Options
UV sterilization module
Laser date coding
Vision inspection system
Production data tracking
Remote monitoring interface

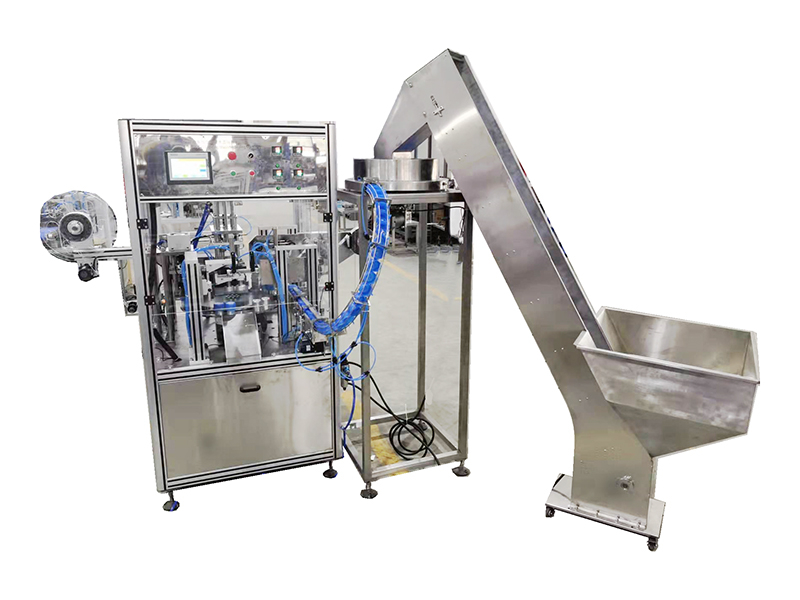

This state-of-the-art labeling machine combines German engineering precision with smart automation to deliver unmatched performance for premium water bottle cap production. The robust stainless steel construction ensures years of reliable operation while maintaining the highest hygiene standards.
